Avondale
Avondale
3 Bedrooms
3 Bathrooms
2630 sq.ft Heated Sq. Ft.
Style: Bungalow
Plan Number: B3-2763-68'X66'
Avondale House Plan – Spacious 3-Bedroom Bungalow with Open Concept Living
Discover the perfect blend of comfort and style with the Avondale House Plan. This 3-bedroom, 2.5-bath bungalow offers 2,630 sq. ft. of heated living space with a functional, open-concept layout. The spacious living, dining, and kitchen areas flow seamlessly, highlighted by vaulted ceilings up to 16 feet, creating a bright and airy atmosphere.
The plan includes a 2-car attached garage, ample storage, and thoughtfully designed bedrooms for family comfort and privacy. Ideal for families or those seeking a modern, efficient home, the Avondale can be built on a slab foundation or adapted to suit your site.
Whether you’re looking for a family home or a small estate, the Avondale combines practical living, style, and timeless appeal.
Highlights:
3 Bedrooms, 2.5 Bathrooms
Open-concept main floor
Vaulted ceilings in select areas
2-car attached garage
Total area: 2,763 sq. ft.
Bring your dream home to life with the Avondale – where comfort meets design.
Dimensions
Width: 68'-0" W
Depth: 66'-0"D
Max Ridge Height: 24'-1"
* Ridge measurement is taken from bottom of door to highest ridge
Square Footage Breakdown
Total Heated Area: 2630 sq.ft
Total Structure area: 2763 sq.ft
* Total Structure sq.ft only includes 2x6 exterior walls space and does not include garage
Beds & Baths
Bedrooms: 3
Full Bathrooms: 2
Half Bathrooms: 1
Ceiling Heights
First Floor: 9'-0"
Vaulted Ceiling Height: 16'-0"
* Vault height is estimated height only
Attached Garage
Garage Bays: 2
Total Area: 664 sq.ft
Roof Details
Primary Pitch: 6:12
Secondary Pitch: 10:12
Foundation Types
Foundation Type: Slab on grade
Optional Foundations:
PLEASE READ BEFORE PURCHASING:
These plans are provided for informational and design purposes only. They do not include engineering or architectural stamps. It is your responsibility to consult with a licensed builder, contractor, or architect who is familiar with local codes and site requirements before beginning any construction.
Couldn't load pickup availability
Receive a full set of working drawings in digital PDF format. This allows you to print as many copies as needed for construction, permitting, and on-site use. All plans are set up to be printed on 11x17 sheets. Scale vary depending on size of house plan. Scale may be 3/16"=1'-0" or 1/8"=1'-0"
PDF – Mirrored - Unlimited Build LicenseThis file is the same as PDF - Unlimited Build license but the plan you see is mirrored.
CAD – Unlimited Build LicenseIdeal for design professionals, engineers, and builders, this option includes the editable CAD (Computer-Aided Design) file. It allows for extensive modifications to the original plan. Since not all professionals use the same version of CAD software, the file is saved in a 2004- compatible format to ensure maximum accessibility.
Shipping Policy
This product is available as a digital download only. No physical items will be shipped. All digital documents will be delivered automatically to the email address provided at the time of purchase. Please note that due to the nature of digital products, all sales are final and non-refundable. If you experience any delays or issues receiving your plans, please don’t hesitate to contact us—we’re here to help!
Frequently Asked Questions
-
What's Included
Most plan sets include the following:
✓ Cover Page

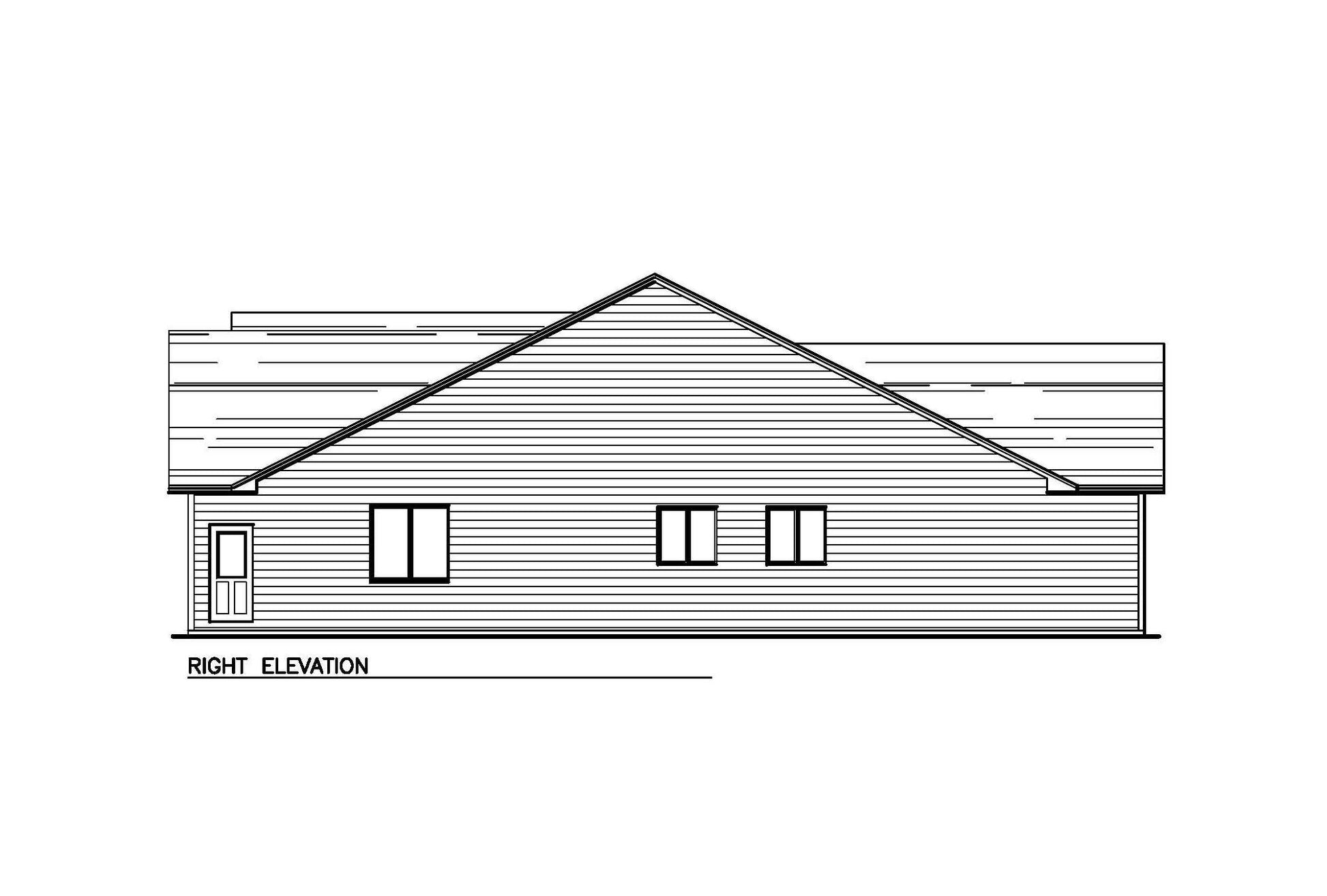

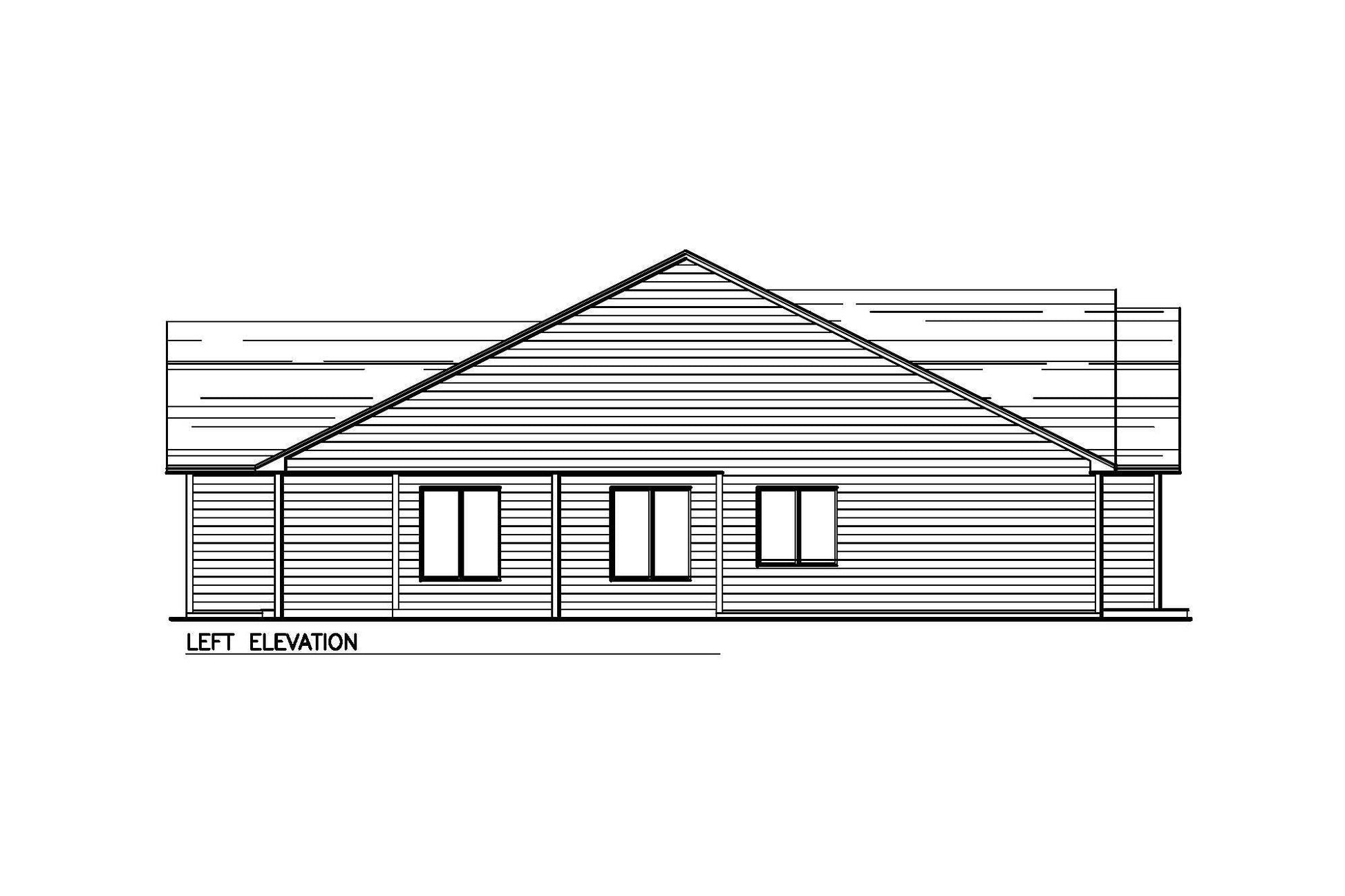

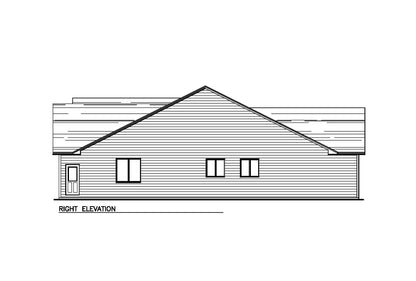

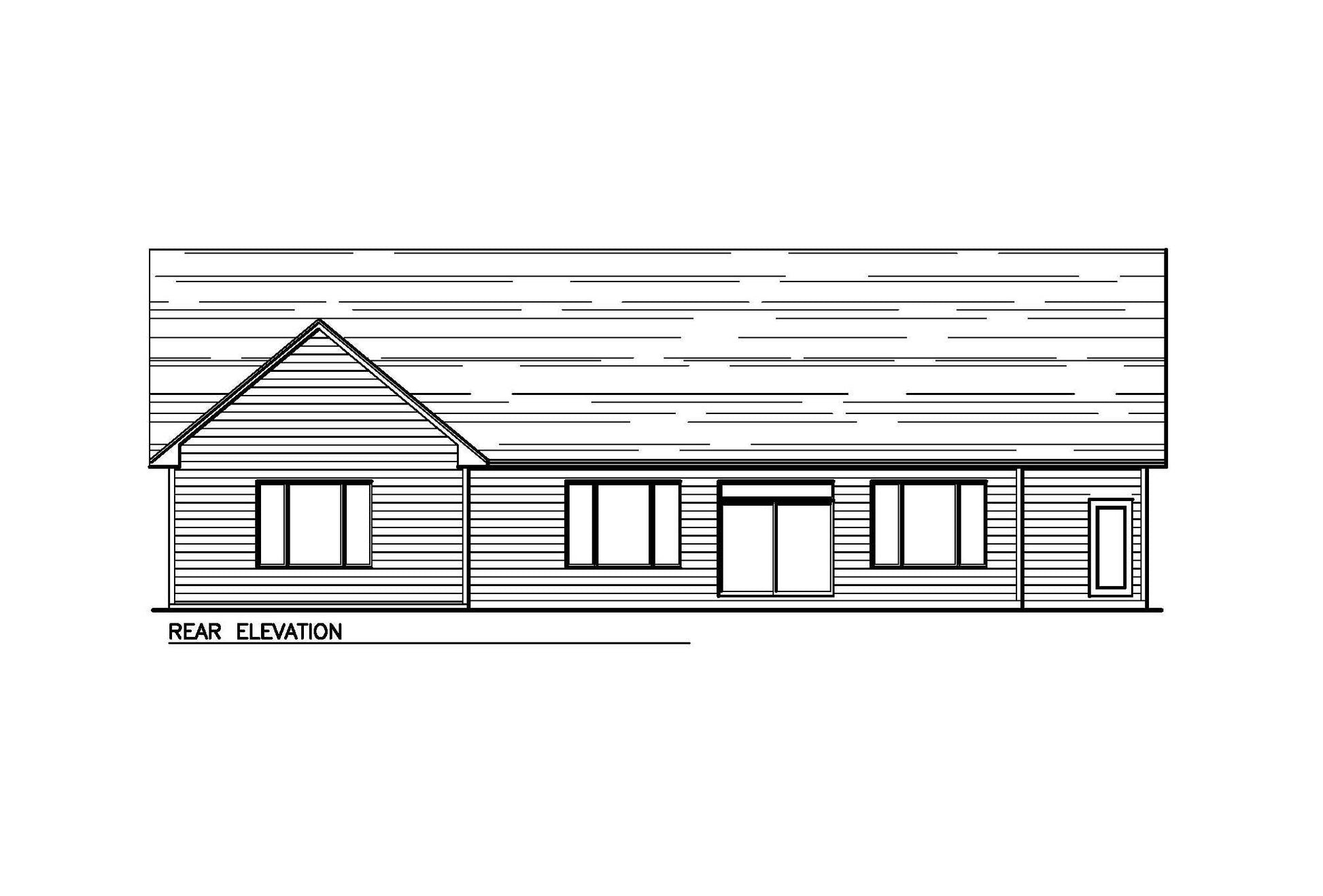

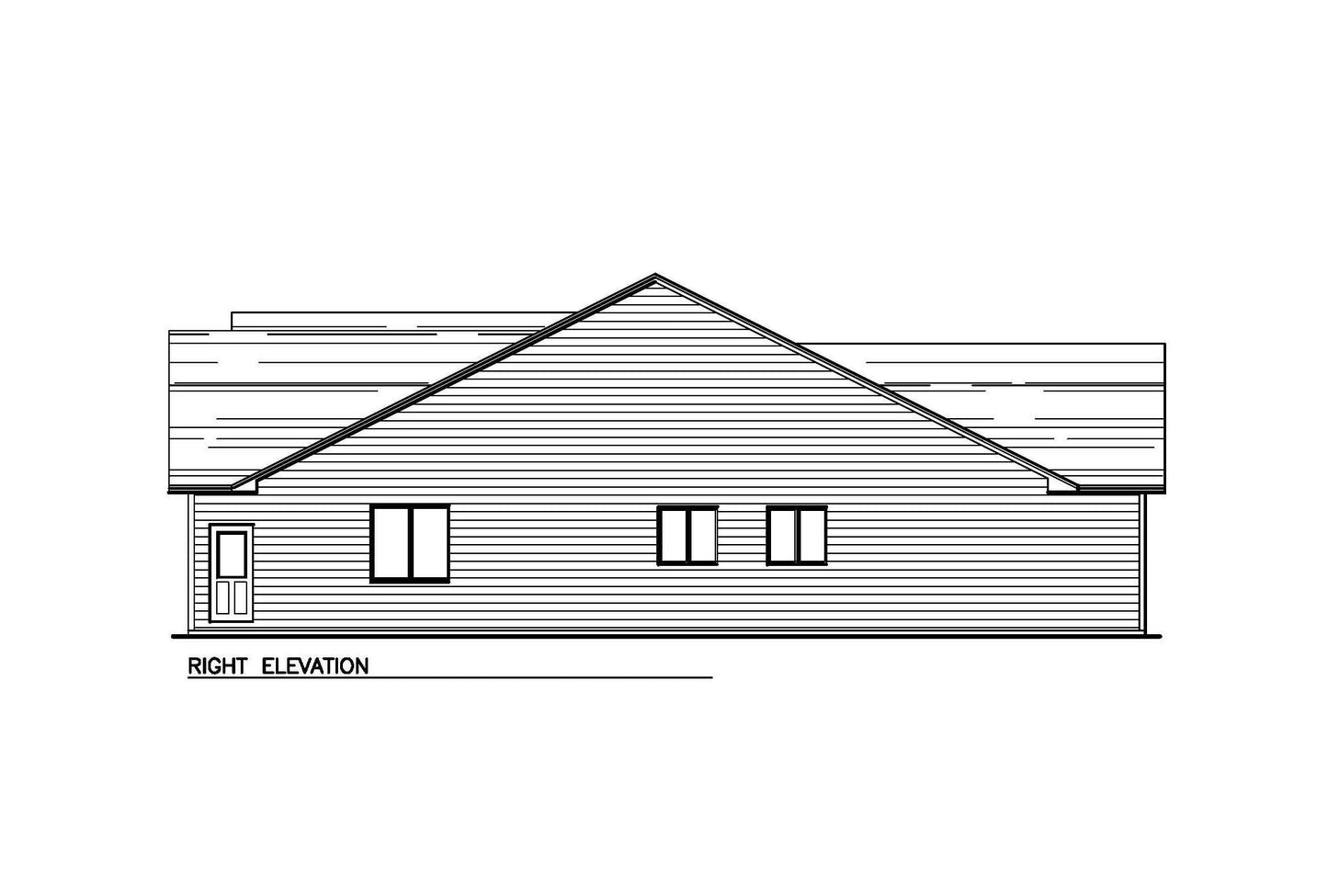

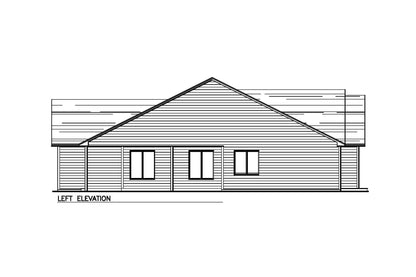

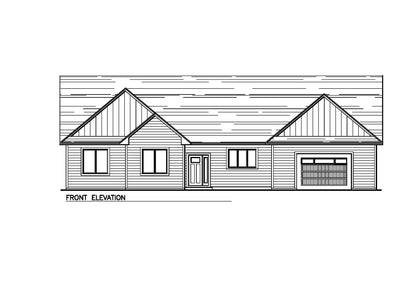

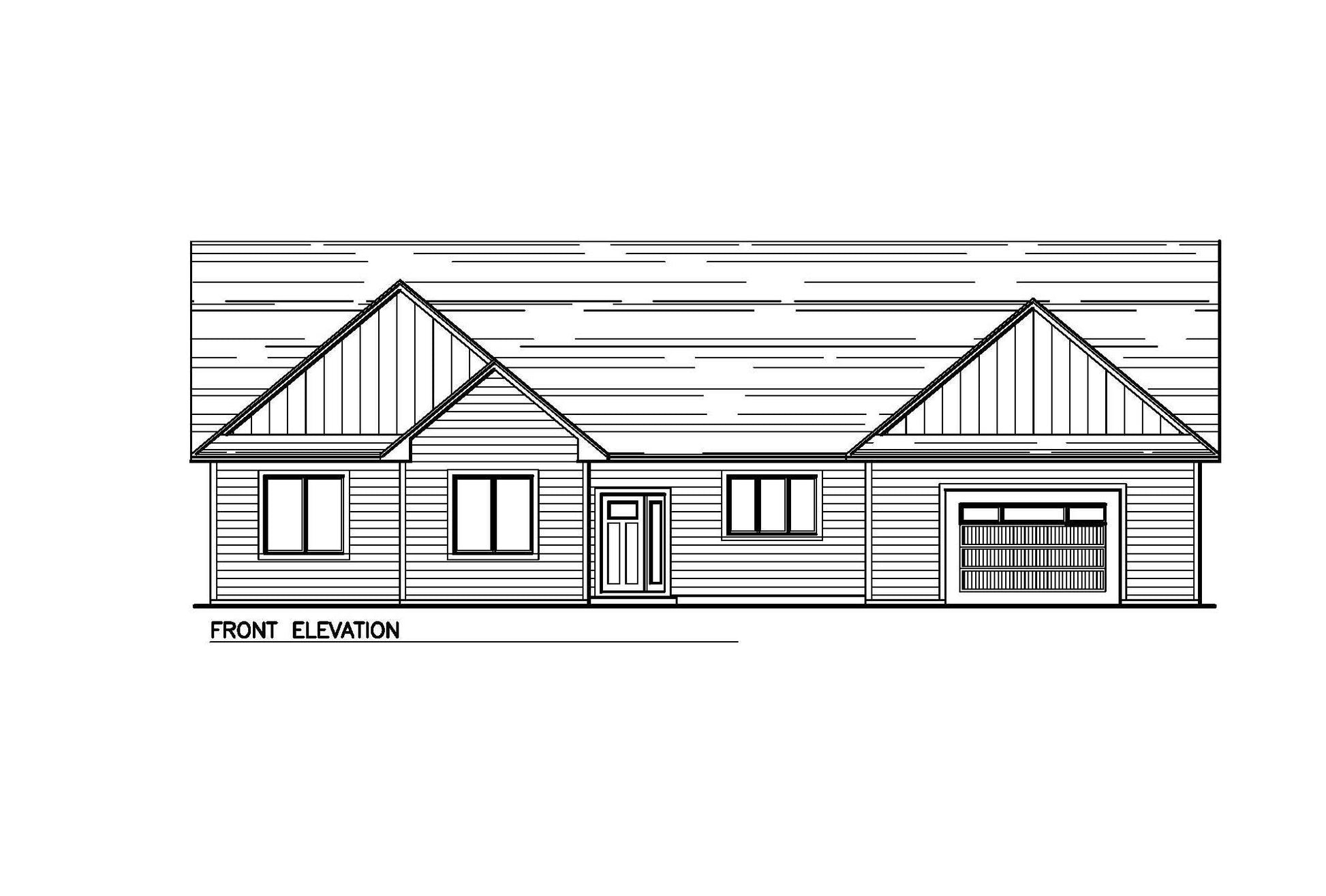

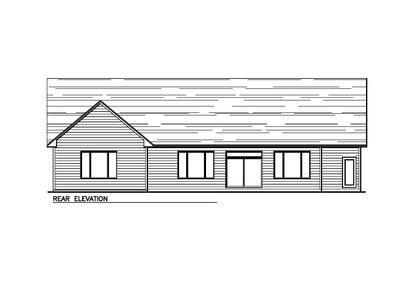

✓ Exterior views
✓ Foundation Plan

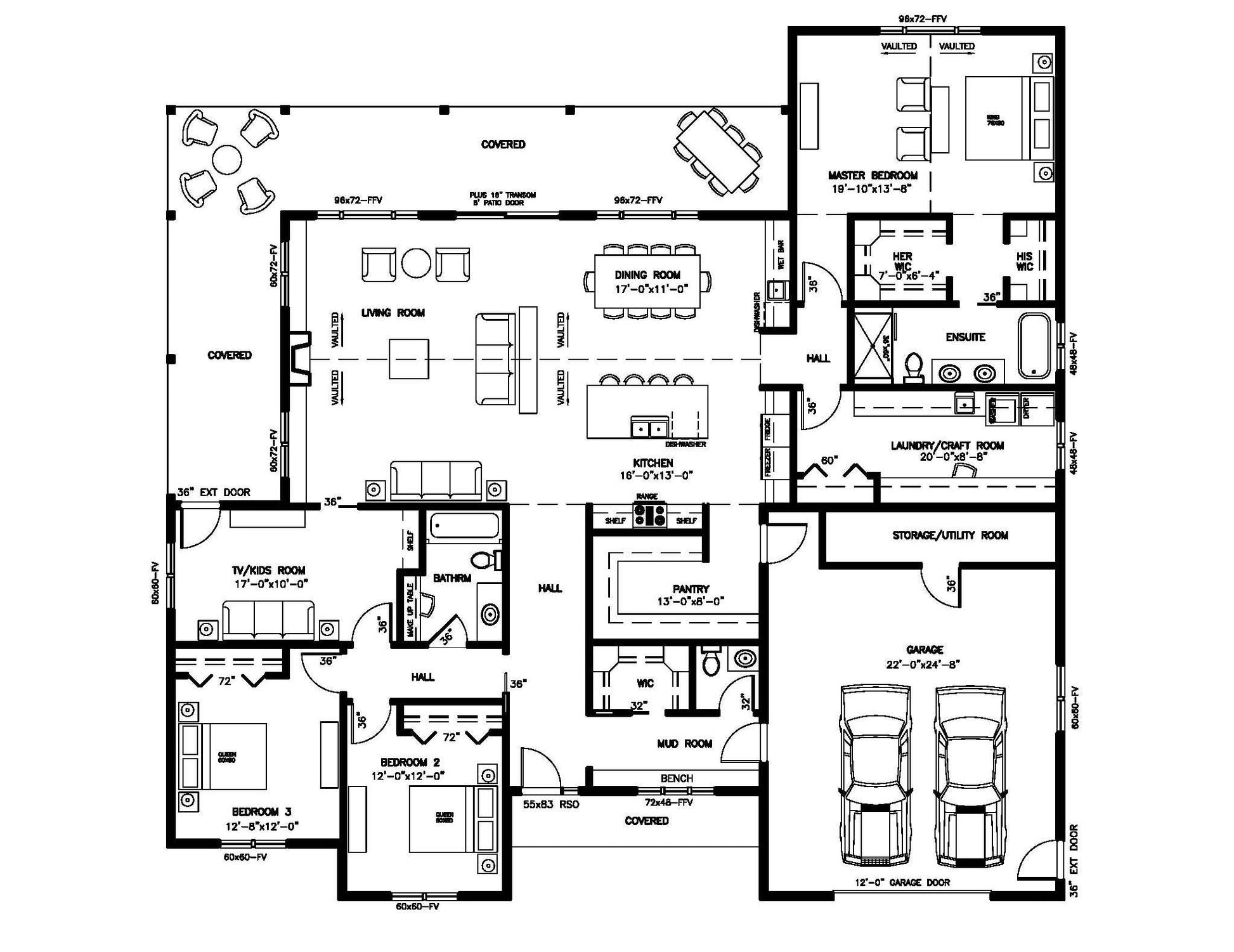

✓ Dimensional Floor plan(s)
✓ Roof plan
✓ Typical Wall Section
✓ All Window & Door sizes are wrote directly on the plan. -
What's Not Included
These items are NOT included:
✕ Architectural or Engineering Stamp - Handled locally if required.
✕ Site Plan - Handled locally when required.
✕ Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this
✕ Plumbing Drawings ( drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
Please Note: Items Not Included
Certain elements are not included in our plans for important reasons. Our designs are sold across the country, and building codes can vary widely depending on the location. Including specific details could lead to non-compliance with your local regulations.
To maintain flexibility and ensure code compliance, we recommend that these components be determined by licensed local professionals—such as engineers, contractors, or architects—who are familiar with your region’s requirements and site-specific conditions.
This approach ensures that your project team can tailor the plans to meet all necessary local standards while still benefiting from a solid and well-designed foundation.
