Bay Roberts

Bay Roberts


  • 3 Bedrooms
  • 3 Bathrooms
  • 2055 sq.ft Heated Sq. Ft.

Style: Bungalow

Plan Number: B3-2190G -74'x54'



Bay Roberts  - B3-2190G – Jack & Jill Bathroom | Slab-on-Grade Ranch

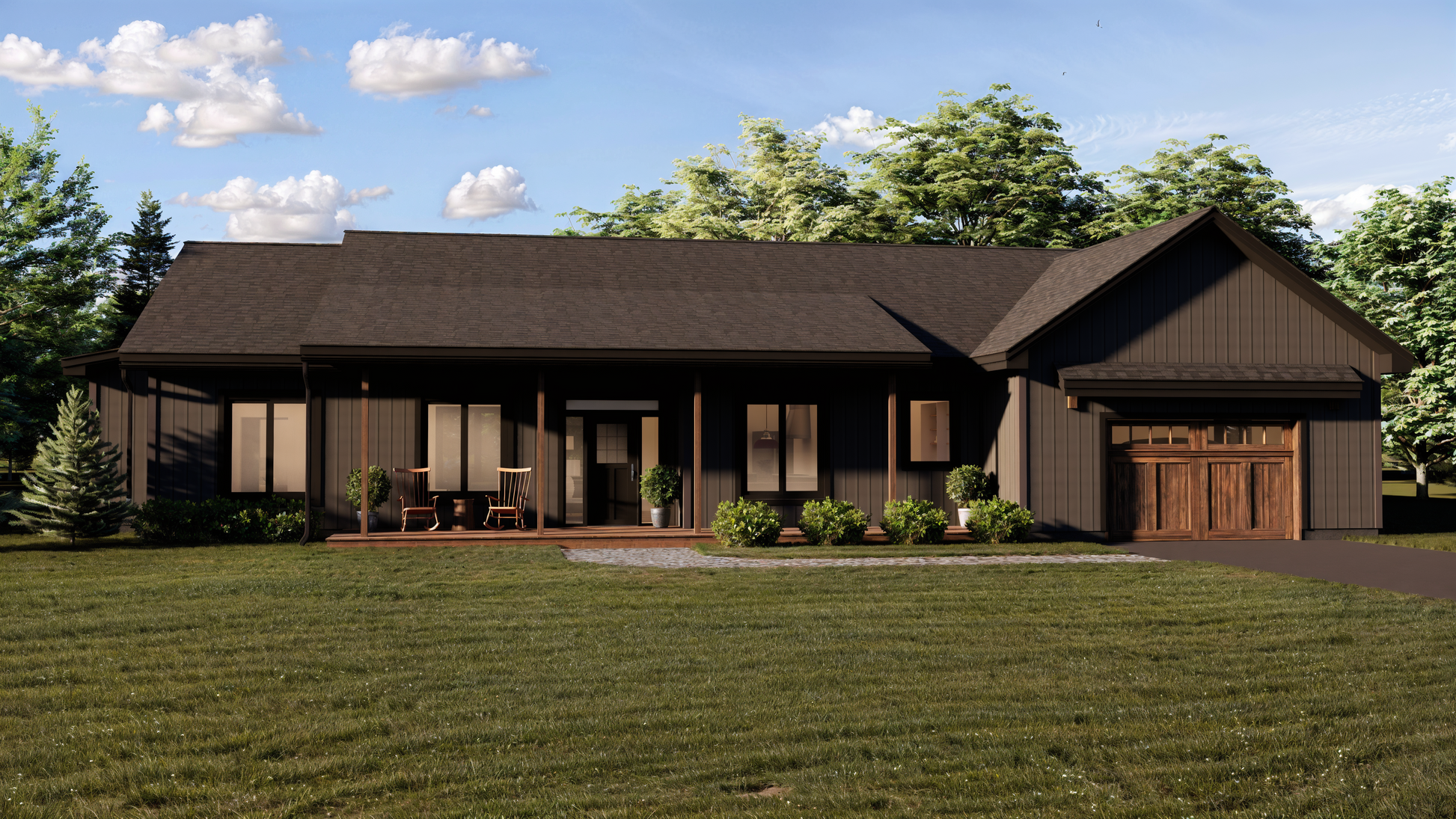

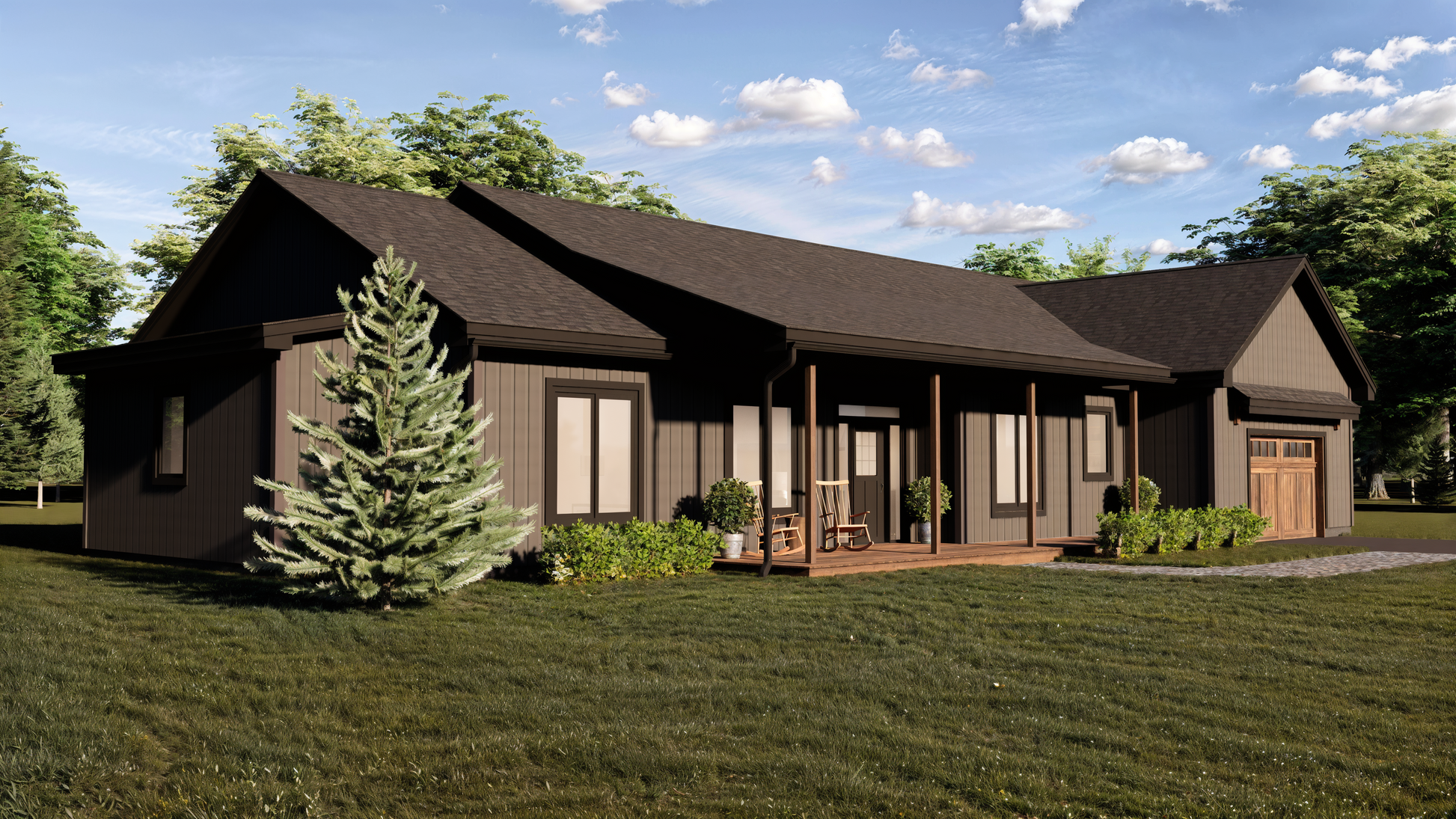

This thoughtfully designed single-storey ranch-style home offers the perfect balance of comfort, functionality, and timeless curb appeal. Ideal for families, downsizers, or anyone looking for efficient one-level living, this plan is designed on a slab-on-grade foundation—making it practical, accessible, and cost-effective to build.

With 2,190 sq. ft. of total living space (approximately 2,055 sq. ft. heated), this home features 3 bedrooms and 3 bathrooms, including a smart Jack & Jill bathroom connecting Bedrooms 2 and 3—perfect for children or guests while still offering privacy and convenience.

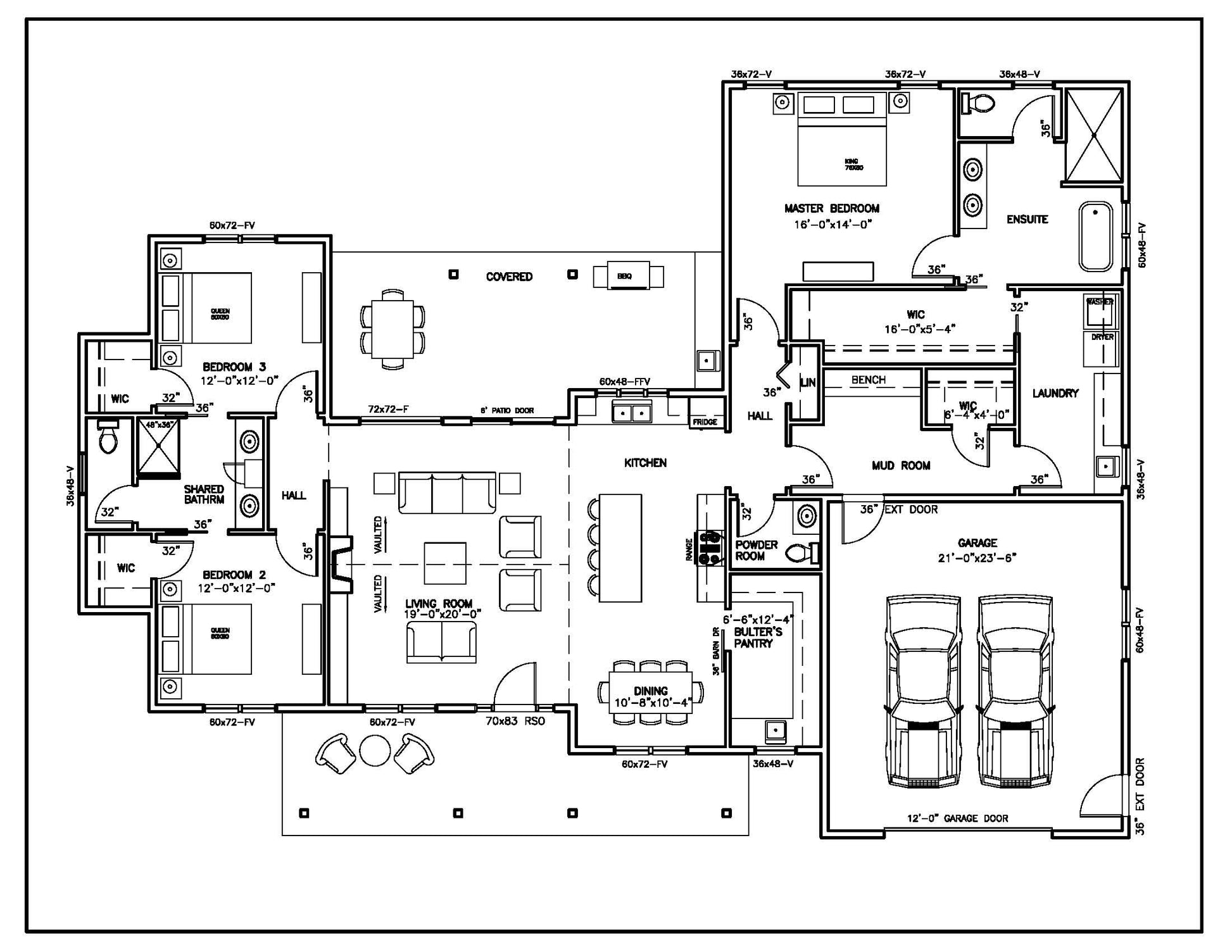

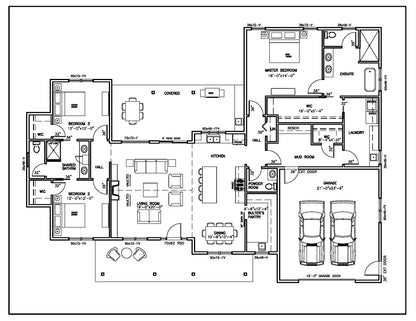

The heart of the home is the open-concept kitchen, dining, and living area, designed for everyday living and entertaining alike. The kitchen includes a generous island, a walk-in butler’s pantry, and excellent flow to the dining space and covered patio—ideal for hosting or relaxing outdoors. The living room features a vaulted ceiling, adding warmth and openness to the space.

The primary suite is privately located and offers a peaceful retreat with a spacious walk-in closet, and a well-appointed ensuite bathroom.

Additional highlights include:

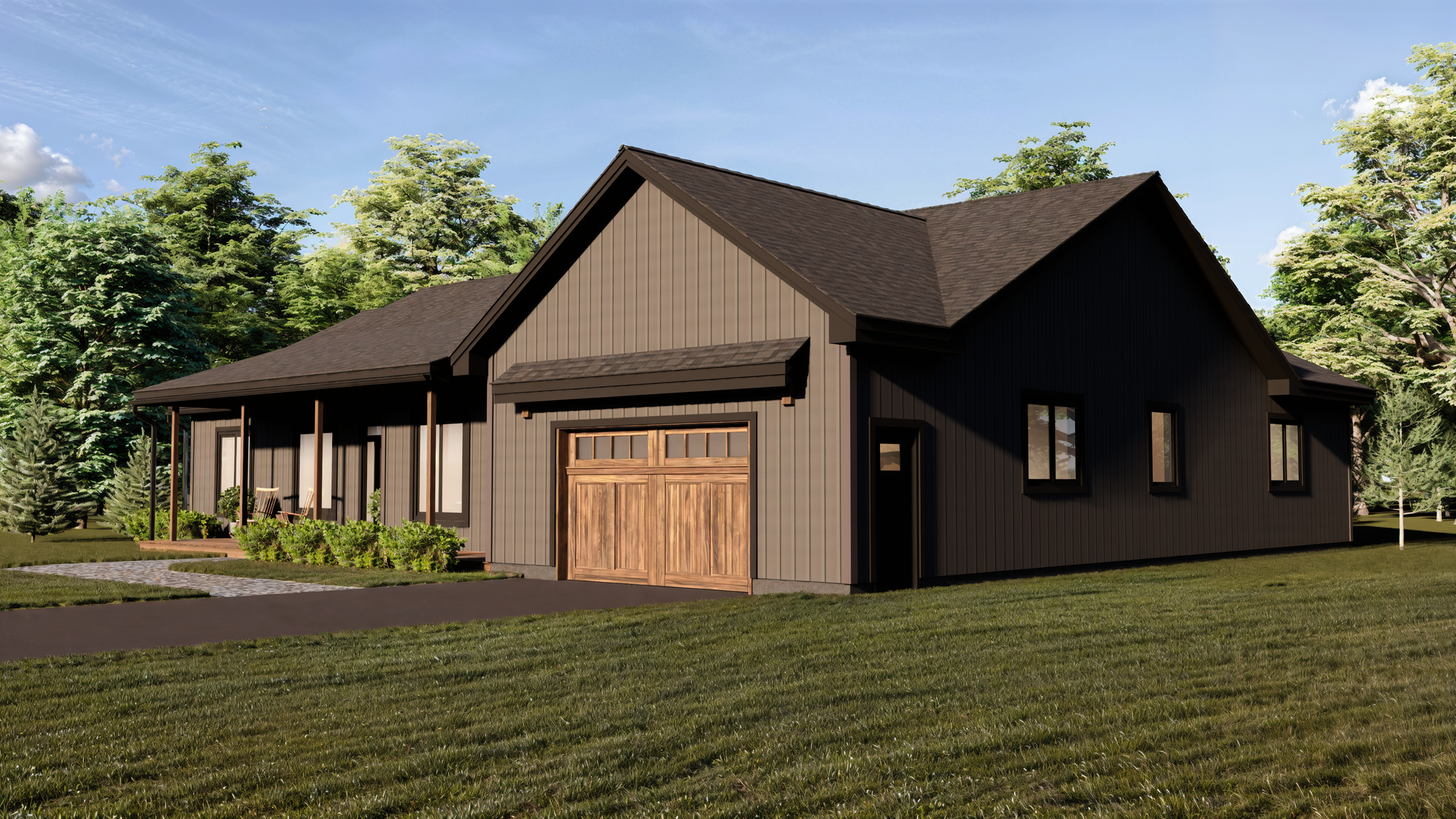

  • Attached double garage (approx. 520 sq. ft.) with convenient access to the mudroom

  • Dedicated laundry room with access to Master bedroom walk in closet.

  • Mudroom with built-in bench for organized daily living

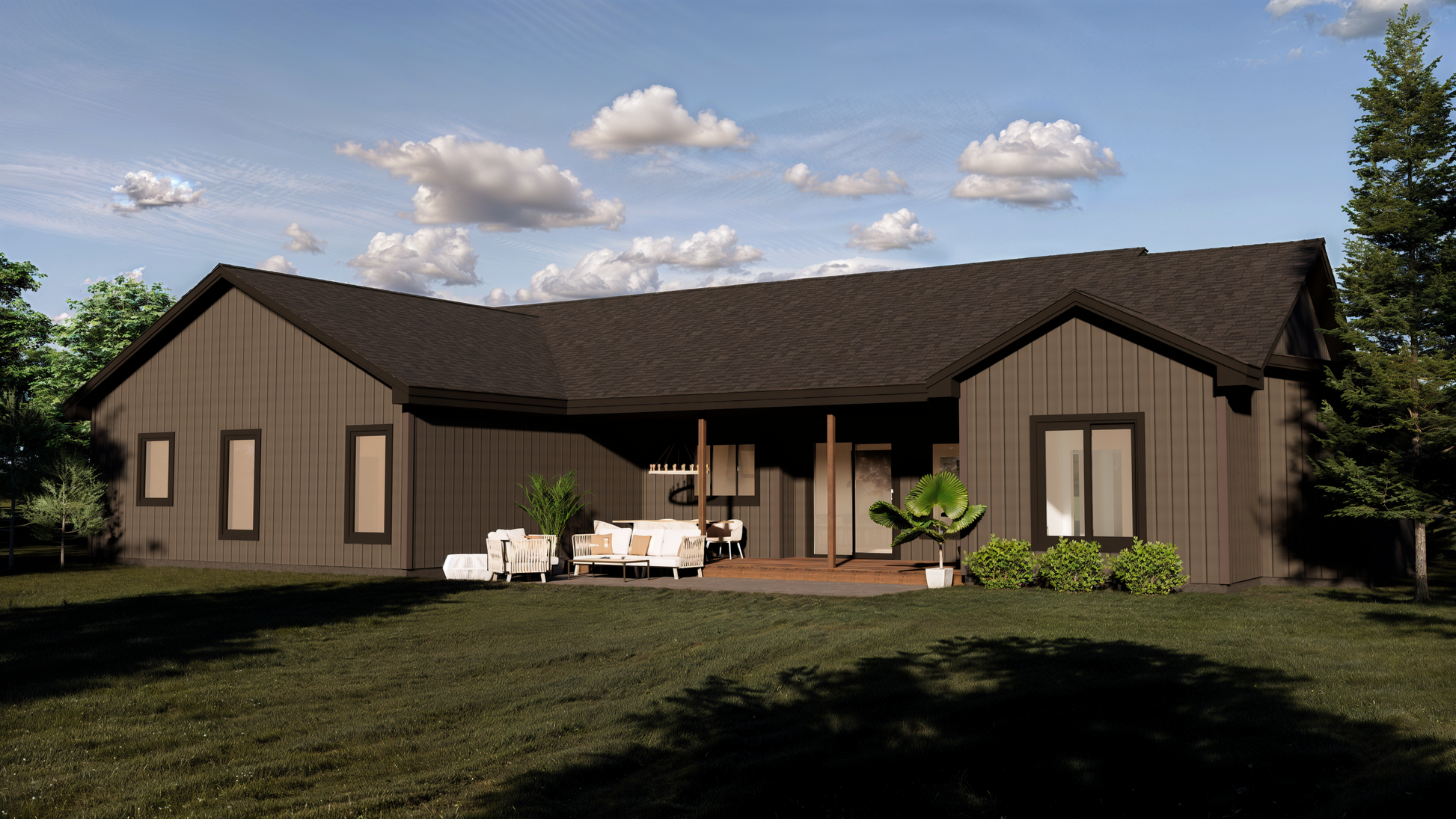

  • Covered patio for outdoor enjoyment

  • Clean, classic exterior styling that suits a variety of settings

Key Plan Details:

  • Bedrooms: 3

  • Bathrooms: 3

  • Heated Living Area: approx. 2,055 sq. ft.

  • Total Building Area: approx. 2,190 sq. ft.

  • Garage: 520 sq. ft.

  • Foundation: Slab-on-grade

  • Overall Size: 75' x 54'

This plan is ideal for modern family living while remaining efficient, practical, and adaptable to many lifestyles.


Dimensions

Width: 75'-0" W

Depth: 54'-0"D

Max Ridge Height: 19'-1"

* Ridge measurement is taken from bottom of door to highest ridge


Square Footage Breakdown

Total Heated Area: 2055 sq.ft

Total Structure area: 2190 sq.ft

* Total Structure sq.ft only includes 2x6 exterior walls space and does not include garage


Beds & Baths

Bedrooms: 3

Full Bathrooms: 2

Half Bathrooms: 1


Ceiling Heights

First Floor: 9'-0"

* Vault height is estimated height only


Attached Garage

Garage Bays: 2

Total Area: 519


Roof Details

Primary Pitch: 6:12

Secondary Pitch: 8:12 3.5:12


Foundation Types

Foundation Type: Slab On Grade

Optional Foundations: 4' Crawl Space



PLEASE READ BEFORE PURCHASING:
These plans are provided for informational and design purposes only. They do not include engineering or architectural stamps. It is your responsibility to consult with a licensed builder, contractor, or architect who is familiar with local codes and site requirements before beginning any construction.

$1,095.00 CAD
$1,095.00 CAD
Sale Sold out
Delivery Format
PDF – Unlimited Build License

Receive a full set of working drawings in digital PDF format. This allows you to print as many copies as needed for construction, permitting, and on-site use. All plans are set up to be printed on 11x17 sheets. Scale vary depending on size of house plan. Scale may be 3/16"=1'-0" or 1/8"=1'-0"

PDF – Mirrored - Unlimited Build License

This file is the same as PDF - Unlimited Build license but the plan you see is mirrored.

CAD – Unlimited Build License

Ideal for design professionals, engineers, and builders, this option includes the editable CAD (Computer-Aided Design) file. It allows for extensive modifications to the original plan. Since not all professionals use the same version of CAD software, the file is saved in a 2004- compatible format to ensure maximum accessibility.


Shipping Policy

This product is available as a digital download only. No physical items will be shipped. All digital documents will be delivered automatically to the email address provided at the time of purchase. Please note that due to the nature of digital products, all sales are final and non-refundable. If you experience any delays or issues receiving your plans, please don’t hesitate to contact us—we’re here to help!


Frequently Asked Questions

View full details

  • What's Included

    Most plan sets include the following:

    ✓ Cover Page

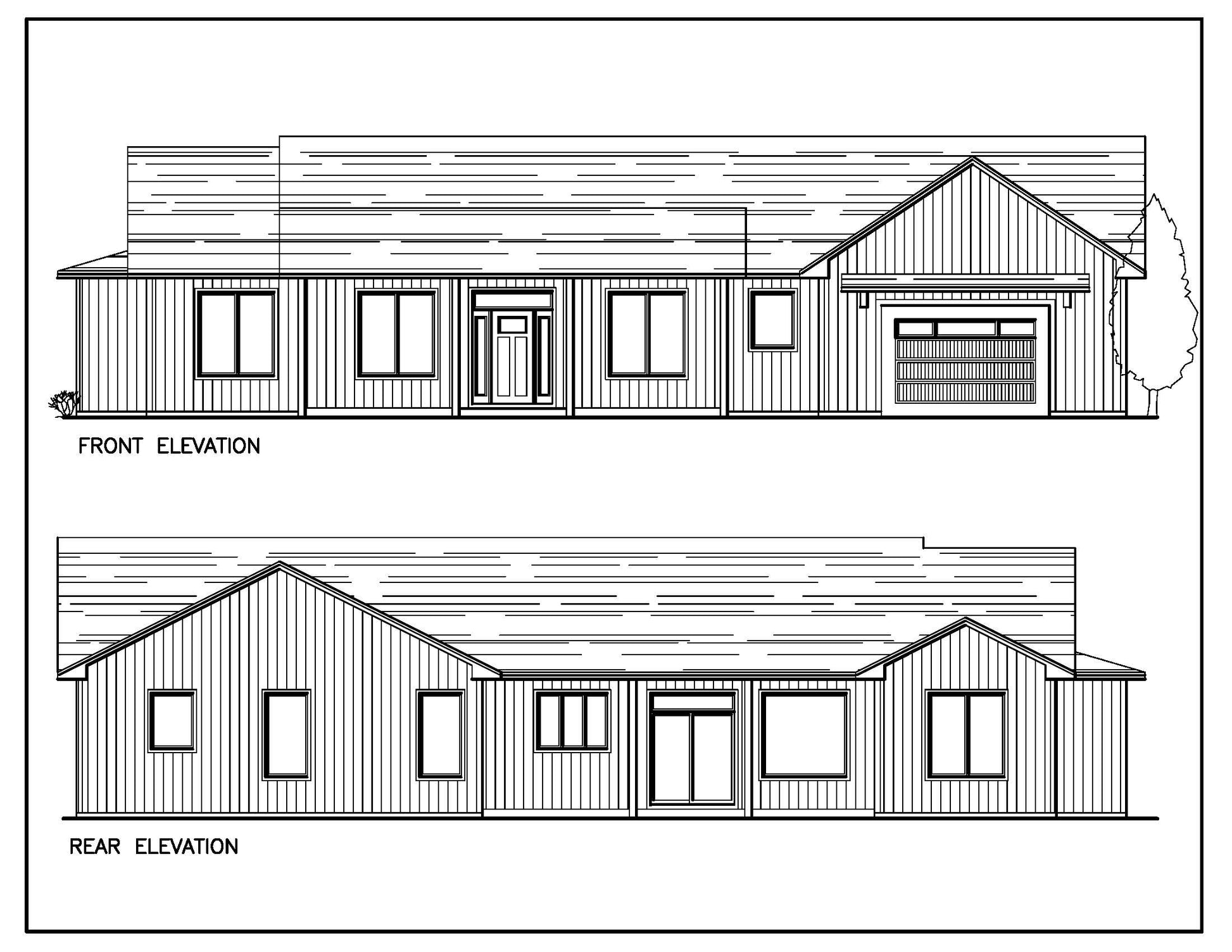

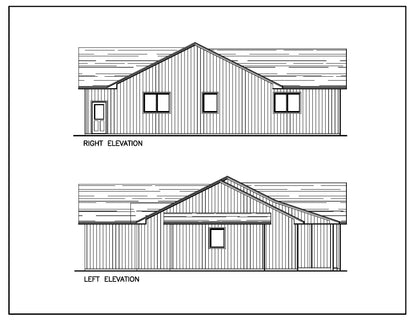

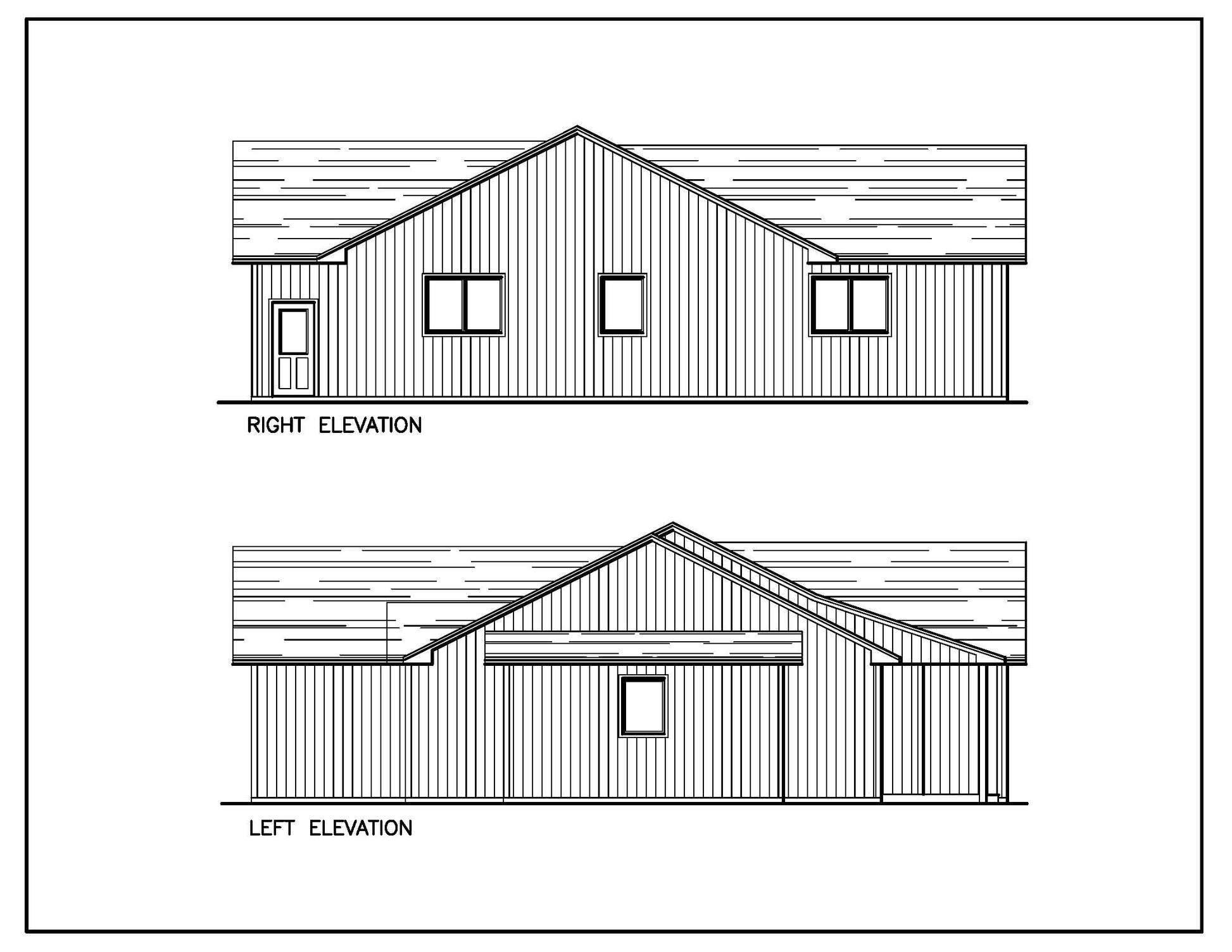

    ✓ Exterior views
    ✓ Foundation Plan
    ✓ Dimensional Floor plan(s)
    ✓ Roof plan
    ✓ Typical Wall Section
    ✓ All Window & Door sizes are wrote directly on the plan.

  • What's Not Included

    These items are NOT included:

    ✕ Architectural or Engineering Stamp - Handled locally if required.

    ✕ Site Plan - Handled locally when required.

    ✕ Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this

    ✕ Plumbing Drawings ( drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Please Note: Items Not Included

Certain elements are not included in our plans for important reasons. Our designs are sold across the country, and building codes can vary widely depending on the location. Including specific details could lead to non-compliance with your local regulations.


To maintain flexibility and ensure code compliance, we recommend that these components be determined by licensed local professionals—such as engineers, contractors, or architects—who are familiar with your region’s requirements and site-specific conditions.


This approach ensures that your project team can tailor the plans to meet all necessary local standards while still benefiting from a solid and well-designed foundation.
